Since 2012, Shah Power has been manufacturing high-quality earthing materials for power transmission and distribution networks, substations, renewable energy projects, railway electrification systems, industrial facilities, telecom infrastructure, and intelligent building protection systems.
Our product range supports reliable grounding solutions across various voltage classes and critical infrastructure applications. With over 30,000 MT of earthing materials supplied by 2026 and an in-house galvanizing capacity of 600 MT per month, we ensure consistent quality, corrosion resistance, and dependable performance in demanding environments.
At Shah Power Pvt. Ltd., our core offerings span four key areas: manufacturing, EPC projects, specialized infrastructure solutions, and renewable energy systems. Backed by decades of industry experience, we remain committed to delivering quality, reliability, and engineering excellence across every project.

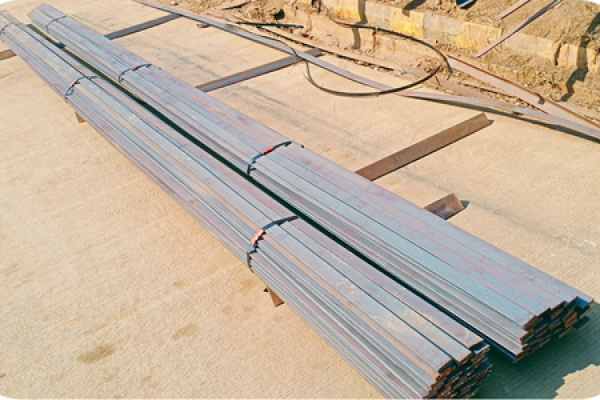

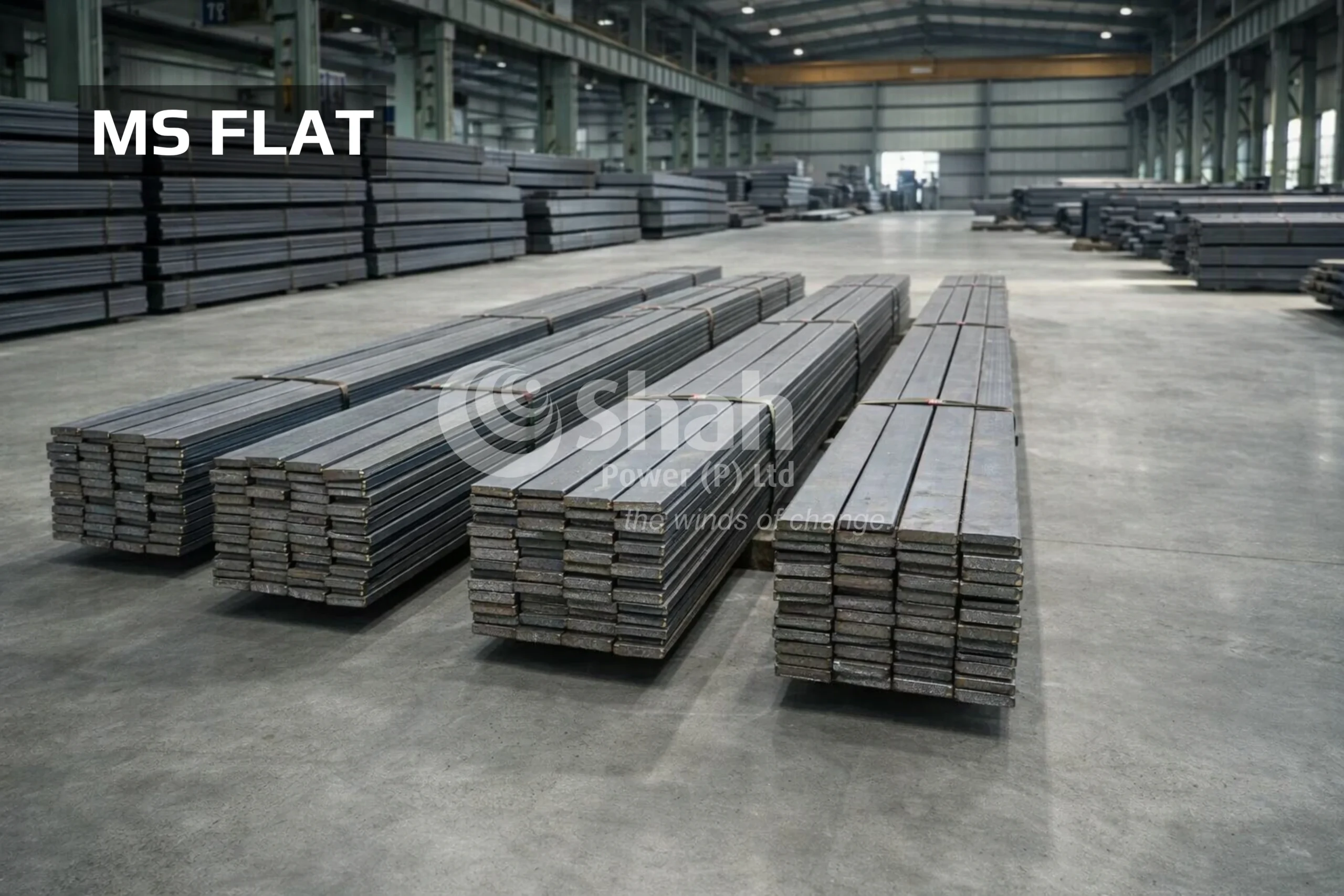

Our Mild Steel Flats are engineered specifically for high-reliability earthing applications across Extra High Voltage (EHV) Substations and Transmission Lines. Designed to withstand demanding electrical faults and environmental conditions, these strips ensure a safe path to ground for diverse infrastructure projects.

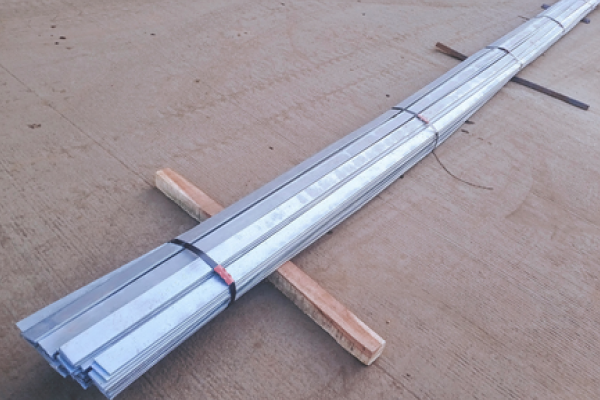

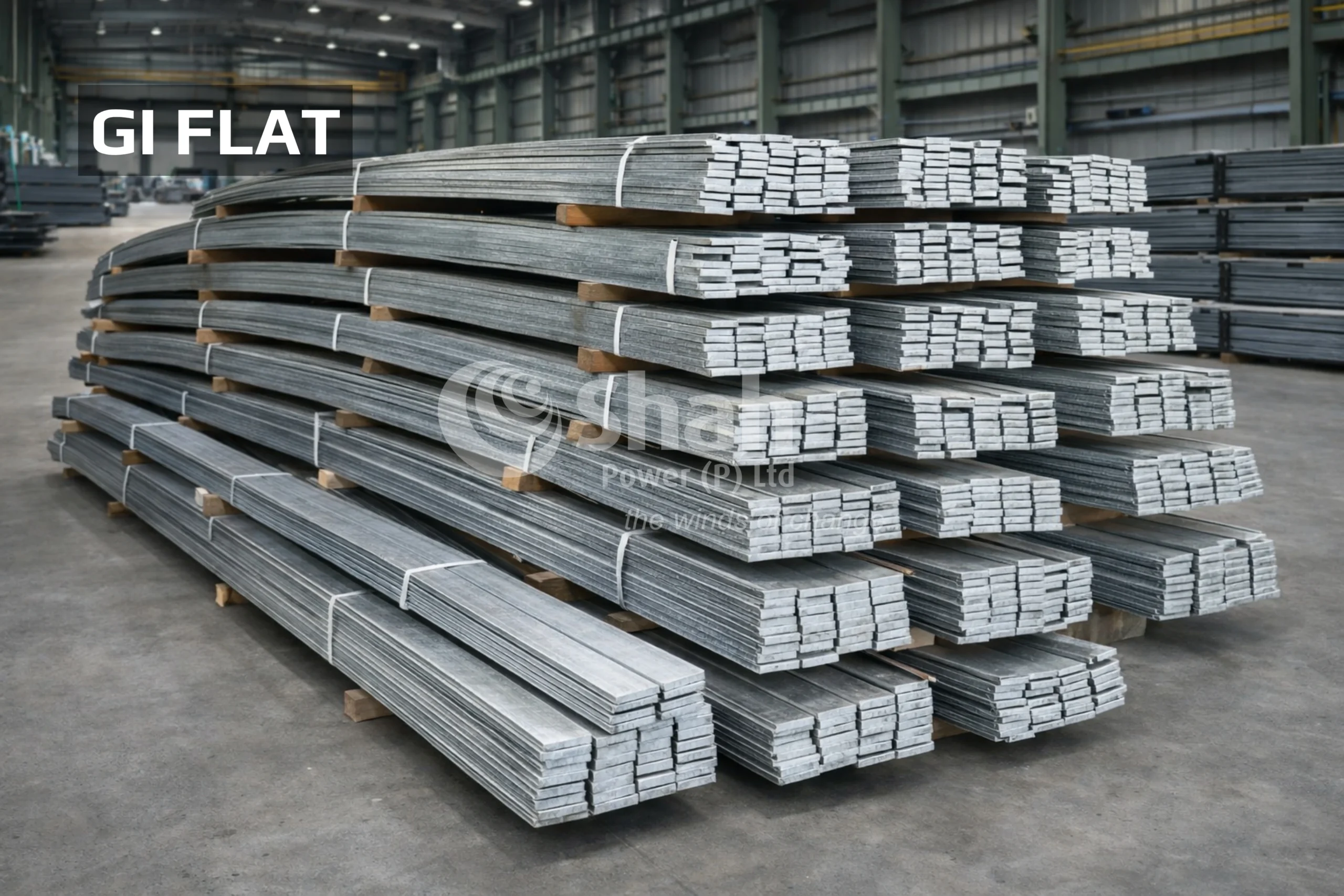

Our Hot-Dip Galvanized (GI) Flats are the industry standard for long-term corrosion protection in grounding systems. By combining the structural strength of Mild Steel with a heavy-duty zinc coating, these strips are designed to endure aggressive soil conditions and outdoor exposure for decades.
Widely utilized in critical infrastructure, our GI strips provide a low-resistance path for fault currents, protecting both equipment and personnel.
| Parameter | Mild Steel (MS) Flats | Hot-Dip Galvanized (GI) Flats |
|---|---|---|
|
Material Grade |
IS : 2062 (E-250) Grade |
IS : 2062 (E-250) Grade |
|
Surface Finish |
Black / Self-Finish |
Hot-Dip Galvanized |
|
Compliance Standards |
IS : 2062 |
IS : 2633, 2629, 4759 |
|
Corrosion Resistance |
Standard |
High (Zinc Coated) |
|
Maximum Lenth |
6 to 12 Meters |
6 to 12 Meters |
| Width (mm) | 25 | 32 | 40 | 50 | 65 | 75 | 100 |
|---|---|---|---|---|---|---|---|
|
Thicknesses (mm) |
3, 5, 6 |
5, 6 |
5, 6 |
5, 6, 8, 10 |
5, 6, 8, 10 |
6, 8, 10, 12 |
8, 10, 12,16 |
EHV Substations & Transmission: Reliable grounding for various voltage classes.
Renewable Energy: Critical protection for Solar and Wind Energy projects.
Infrastructure: Lift Irrigation Schemes (LIS) and Industrial Earthing.
Telecommunications & Railways: Grounding for towers, traction substations, and signalling.
Building Safety: Intelligent building lightning protection systems.

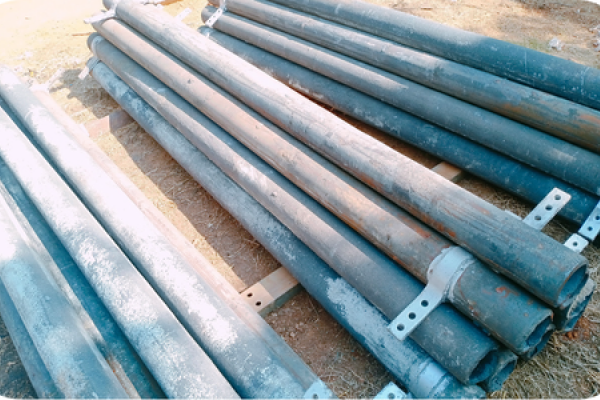

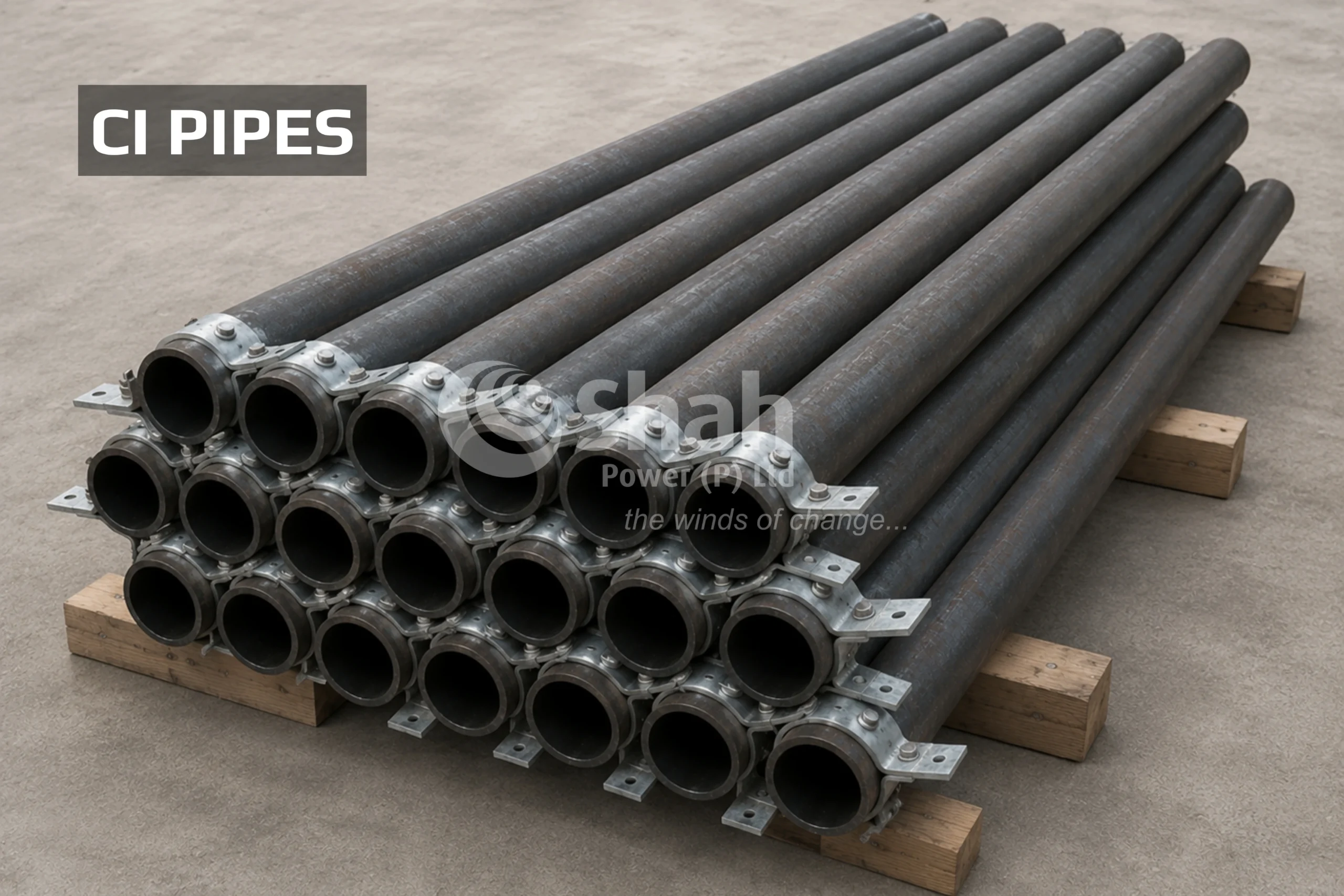

Specially engineered Grey Cast Iron pipes designed for high-pressure water and sewage transmission within EHV Substations. These pipes are essential for maintaining soil moisture levels required for optimal earthing performance.
Fabrication Details:
Includes a two-part clamp fabricated from 50x6mm, 75x10mm, and 75x12mm GI flat. The clamp is continuously welded around the pipe using specialized cast-iron welding electrodes to ensure maximum electrical conductivity and structural durability.

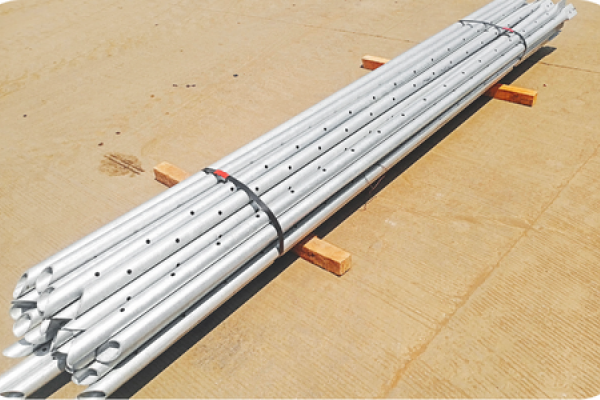

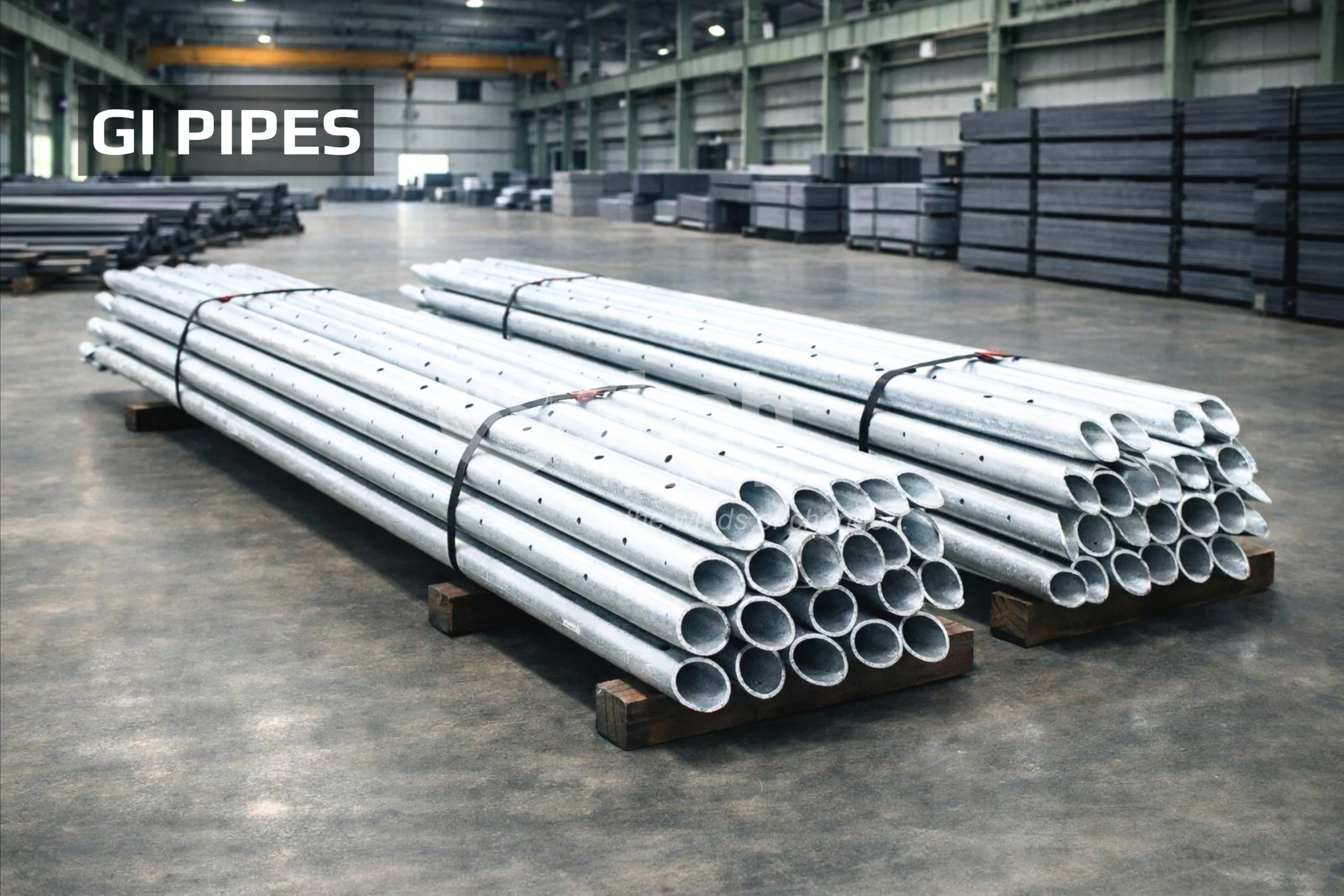

Our GI pipes are multi-purpose solutions widely used in Ship Building, Irrigation, and Power Transmission. We specialize in fabricating GI pipes required for Transmission Line Tower Earthing, ensuring long-term resistance to corrosion and environmental degradation.
| Parameter | Cast Iron (CI) Pipe | GI Earthing Pipe |
|---|---|---|
|
Primary Application |
Substation Pressure Pipe / Sewage |
Tower Earthing, Irrigation, Marine |
|
Standard Diameter |
100 mm (Internal Diameter) |
40 mm (Nominal Bore) |
|
Standard Length |
2.75 Meters |
3.0 Meters |
|
Material Standards |
Grey Cast Iron (Standard Norms) |
IS: 1239 / IS: 1161 (Galvanized) |
|
Special Features |
Continuous Welded GI Flat Clamps |
High Zinc Coating for Rust Prevention |
| Product | Standard Dimensions | Typical Use Case |
|---|---|---|
|
CI Pipe |
100mm ID x 13mm Thk x 2.75M |
Substation Earth Pit Water Feed |
|
GI Pipe |
40mm Dia x 3.0M |
Transmission Line Tower Grounding |
| Feature | Cast Iron (CI) Pipes | Hot-Dip Galvanized (GI) Pipes |
|---|---|---|
|
Primary Utility |
EHV Substation Earthing |
Tower Earthing & Infrastructure |
|
Specific Use |
Water/Sewage feed for Earth Pits |
Transmission Line Tower Grounding |
|
Infrastructure |
Industrial waste & drainage systems |
Irrigation & Tube well casings |
|
Specialized |
Fire protection & road culverts |
Shipbuilding & Marine engineering |
|
Structural |
Underground pressure applications |
Telecom towers & Security fencing |
|
Key Advantage |
High durability & pressure resistance |
Superior rust prevention & versatility |
Our Mild Steel (MS) Round Rods are precision-engineered for critical grounding applications. From standard earth spikes to custom structural rods, we provide high-grade mild steel solutions that offer excellent conductivity and structural durability for power and infrastructure projects.

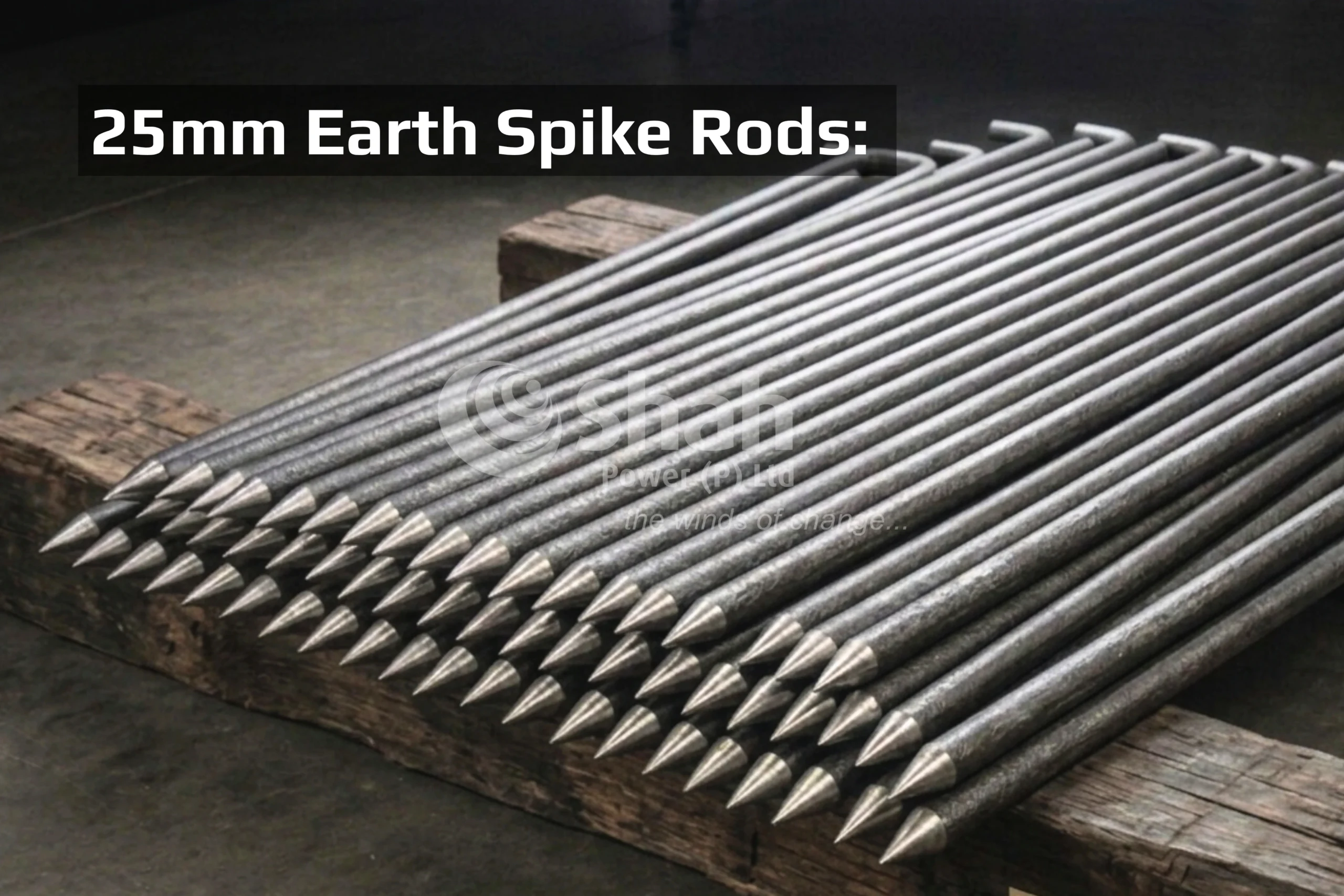

25mm Earth Spike Rods:
Specifically fabricated as per engineering drawings, these spikes are the primary choice for localized grounding and temporary earthing setups.

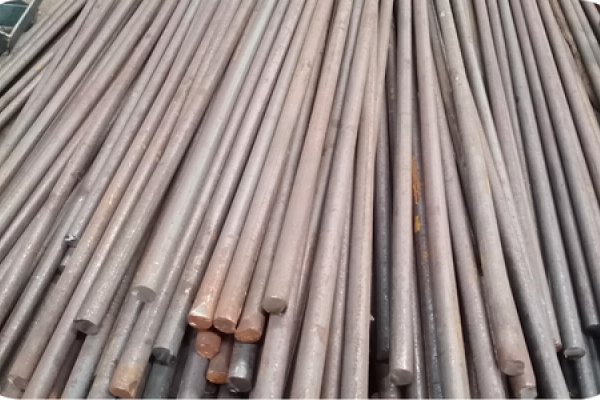

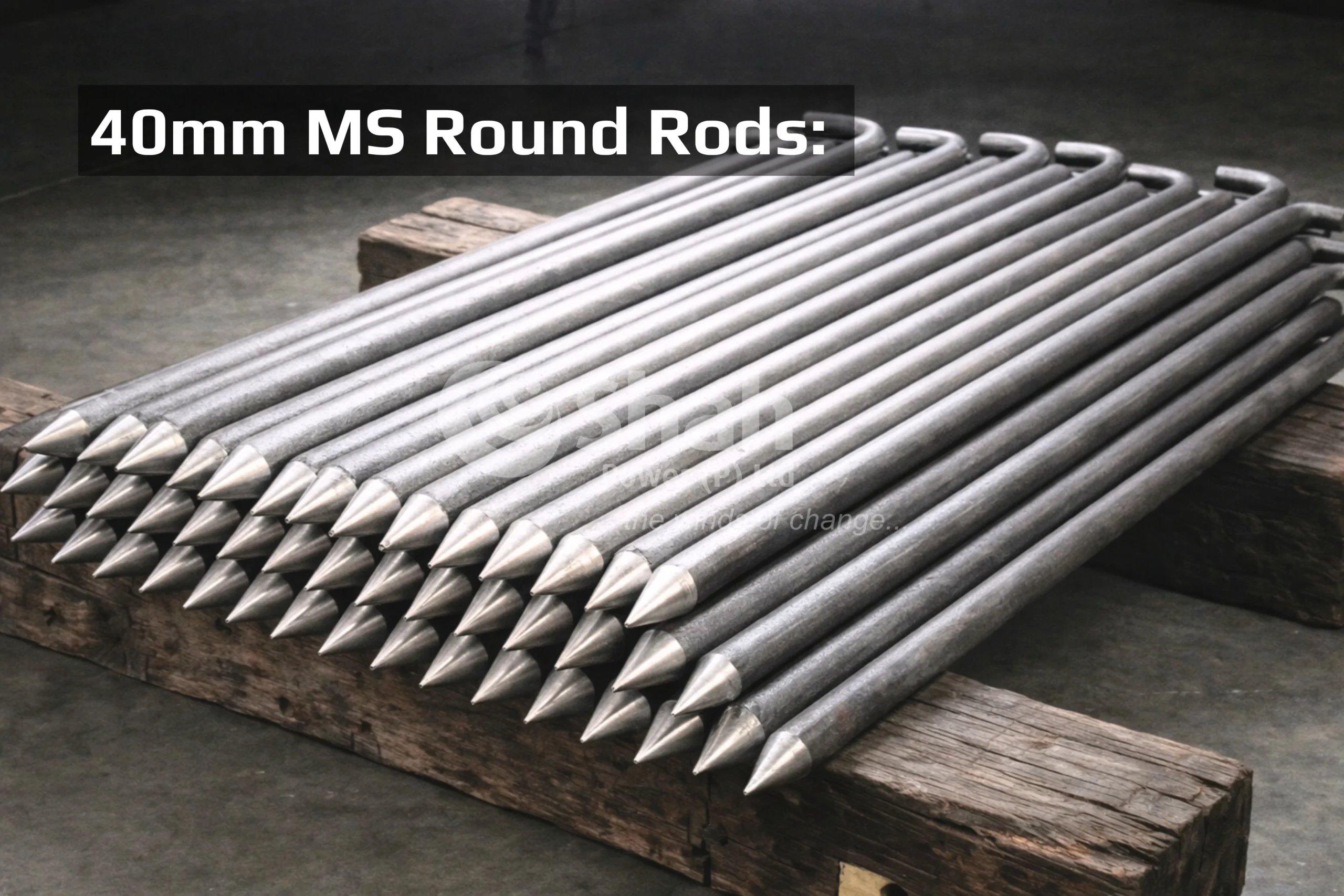

40mm MS Round Rods:
High-diameter rods used for heavy-duty earthing systems and structural reinforcements in substation foundations.
| Parameter | 25mm Earth Spike | 40mm MS Round Rod |
|---|---|---|
|
Diameter |
25 mm |
40 mm |
|
Primary Use |
Earth Spike / Ground Rod |
Main Earthing / Structural |
|
Material Grade |
IS : 2062 (E-250 Quality A) |
IS : 2062 (E-250 Quality A) |
|
Customization |
As per the customer’s drawings and by utility type, |
As per the customer’s drawings and by utility type, |
| Feature | 25mm Earth Spike Rods | 40mm MS Round Rods |
|---|---|---|
|
Earthing |
Localized earth spikes for utilities |
Heavy-duty substation grounding |
|
Infrastructure |
Distribution line grounding |
Foundation reinforcement & supports |
|
Construction |
Temporary site earthing |
Permanent industrial structures |
|
Key Advantage |
Compact & Easy to Install |
High Current Carrying Capacity |
Apart from these materials, we shall also have the scope of supply for other
Earthing Materials according to the Customer’s requirements
